Robotic Clamp -Compact Gripper-SFG-FMA6-M5043

기본 정보
원래 장소: 베이징, 중국
브랜드 이름: Robotic Clamp
인증: FDA CE ISO
모델 번호: 로봇 클램프 -소형 Gripper-SFG-FMA6-M5043
최소 주문 수량: 협상
가격: Negotiation
포장 세부 사항: 통 패키지
배달 시간: 2-3 일 일
지불 조건: L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환
공급 능력: 순서 양에 따라서
상세 정보
이름: 로봇 클램프 -소형 Gripper-SFG-FMA6-M5043 로드: 4500g
스맥스: 20 밀리미터 중량: 1134g

제품 설명



Robotic ClampCompact Gripper-SFG-FMA6-M5043



Product Description

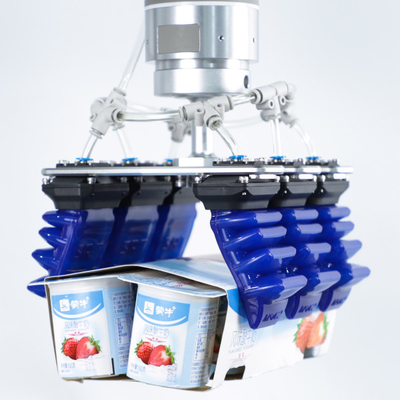

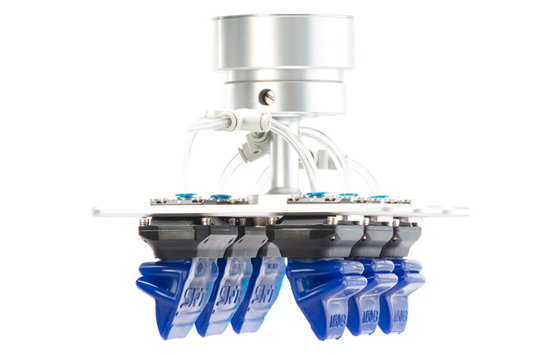

SFG Soft Flexible Gripper is an innovative flexible robotic gripper that mimics the grasping action of human hands and is bionic design. Bending deformation is achieved by air pressure input, it can adaptively cover the target object to complete the grasping action. Reverse bending is realized through the output of air pressure, and the action of placing or preparing to grab is completed.


Parameter
Model Dimensions(mm) Gripping Capacity
Wb Wn Wm Hb Gn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)

SFG-FMA6-M5043 173.4 50 62 168.7 52-100 69 63.5 64 53 20 20.9 52-140




Features / Advantage

Standard working lifespan: ≥3,000,000 times

Load:  4500g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 1134g



Product Detail

Robotic Clamp -Compact Gripper-SFG-FMA6-M5043 0




Applications

SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.

2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.

3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.

Wholesale high quality new stock pneumatic soft robot gripper
